Price range: from €2,152.00 to €3,873.00 No taxes included
Walk-through window for flat roof DXW
The DXW window has been specifically designed for walkable flat roofs and terraces, allowing the passage of people without giving up the entry of natural light into the room below. Its reinforced glass has a non-slip and scratch-resistant surface, providing maximum safety and perfect integration with the surrounding pavement.
Thanks to its excellent thermal insulation (Ug = 0.5 W/m²K y Uw = 0.7 W/m²K), constitutes an ideal solution for highly energy efficient residential and commercial projects.

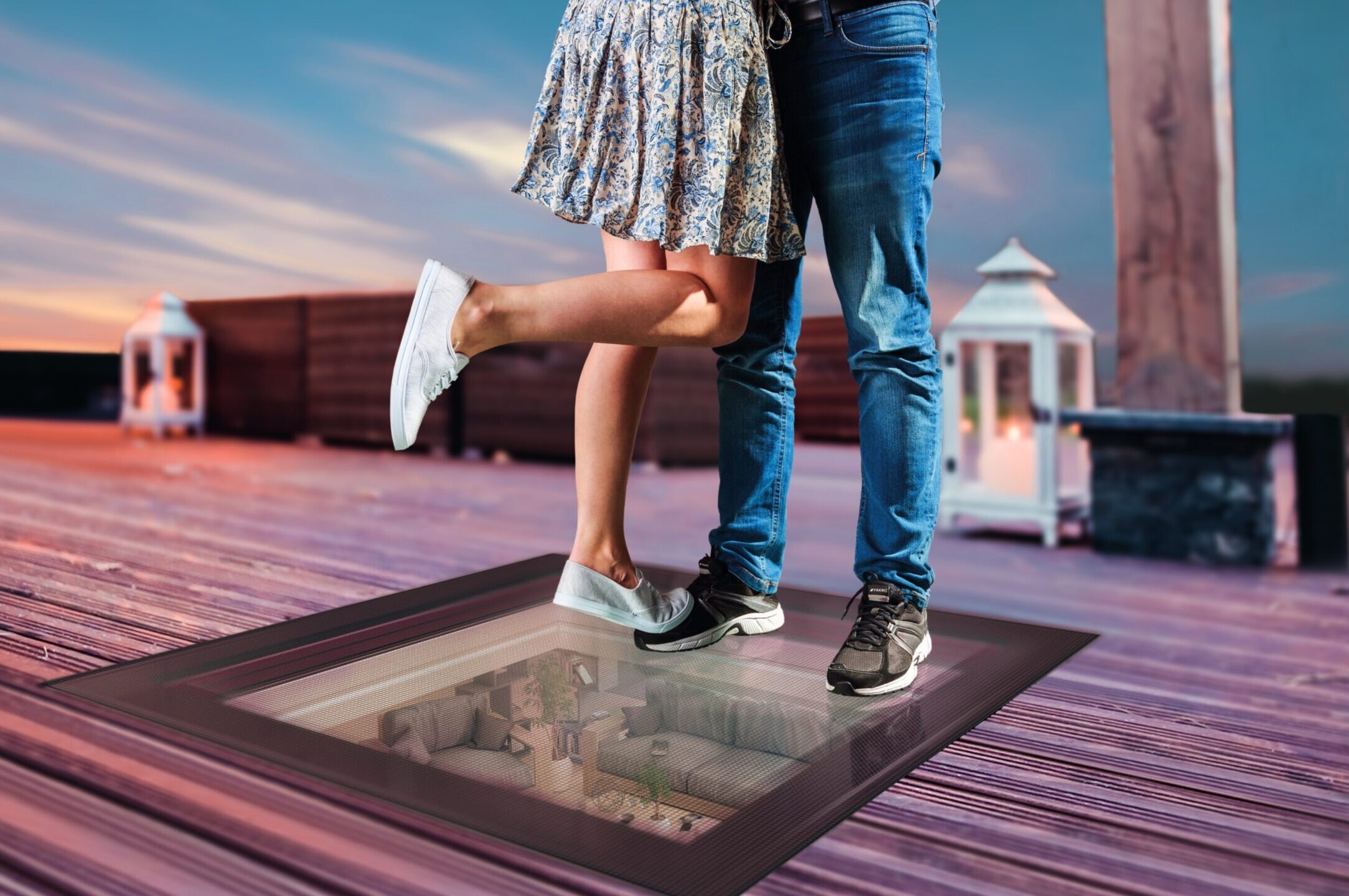

The DXW window has been developed for walkable flat roofs and terraces, where it is necessary to combine the entry of natural light with the possibility of using the roof surface without obstacles.
Its robust construction allows you to create a continuous and uniform surface by placing the terrace tiles at the same height as the glazing, integrating the window in an elegant and practically imperceptible way.
The window incorporates high-resistance reinforced glazing with a non-slip surface and protection against scratches, guaranteeing a high level of safety and durability.
The system is equipped with a special passable glass and a structure designed to withstand loads of up to 2 kN/m².

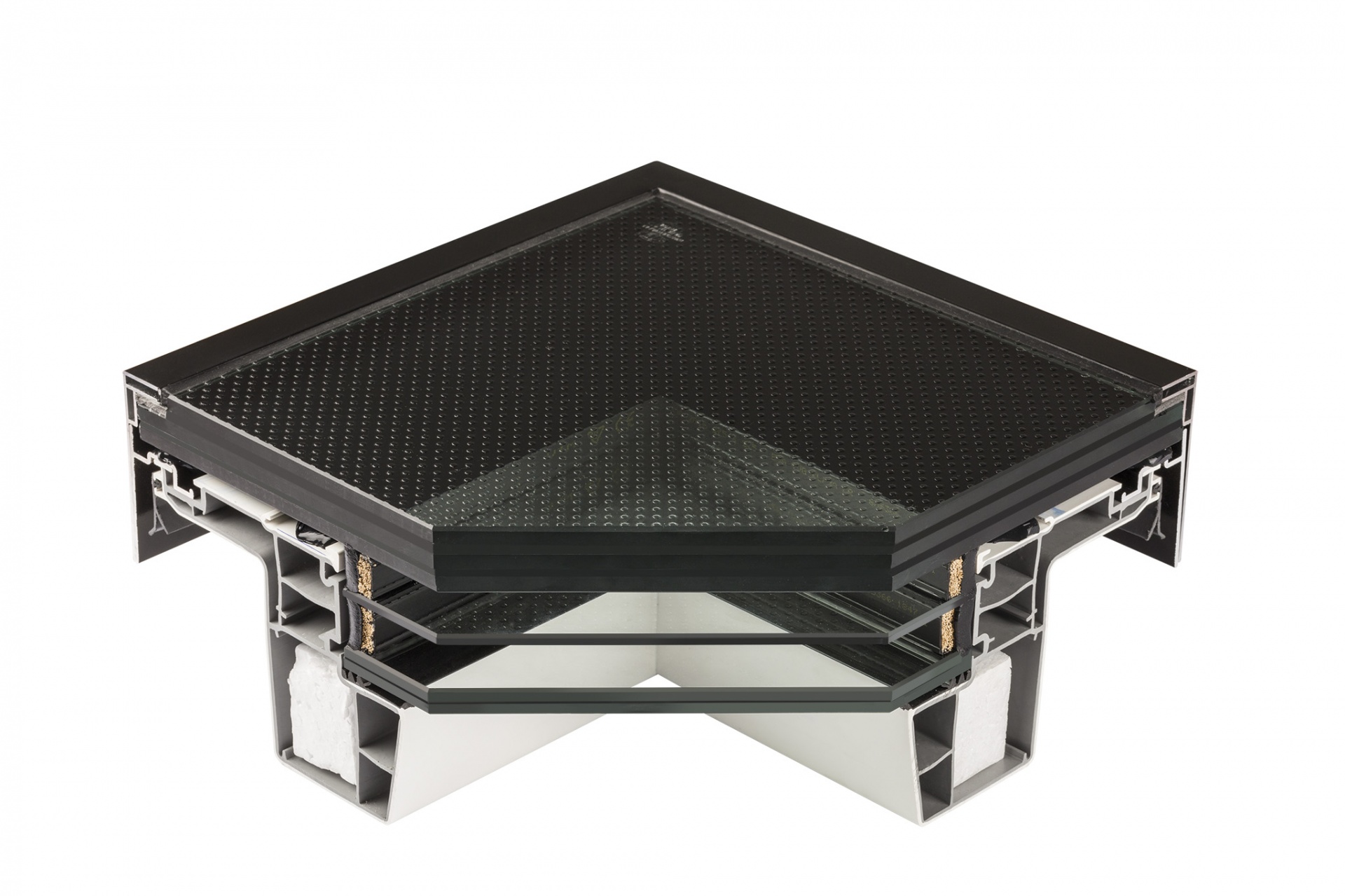

The window incorporates laminated safety glass 888.44H-16-4HT-18-66.2T, specially developed to withstand the traffic of people and provide high mechanical resistance.
The DXW window can be complemented with the following accessories:
The DXW window allows you to make the most of the available space on the roof, providing natural light to the room below and at the same time maintaining a completely functional and safe surface.
| Weight | N/D |
|---|---|
| Dimensions | N/D |
| Size (cm.) | 60×60, 60×90, 70×70, 80×80, 90×90, 90×120, 100×100, 100×150, 120×120, 120×220, 140×140, 150×100, 200×100 |
| Opening | Fixed, Manual, Z-WAVE Electric, Z-WAVE SOLAR Electric |
| Glazing | P2 |
| U-value | 1,1 [W/m²K] |
