Price range: from €605.00 to €3,353.00 No taxes included

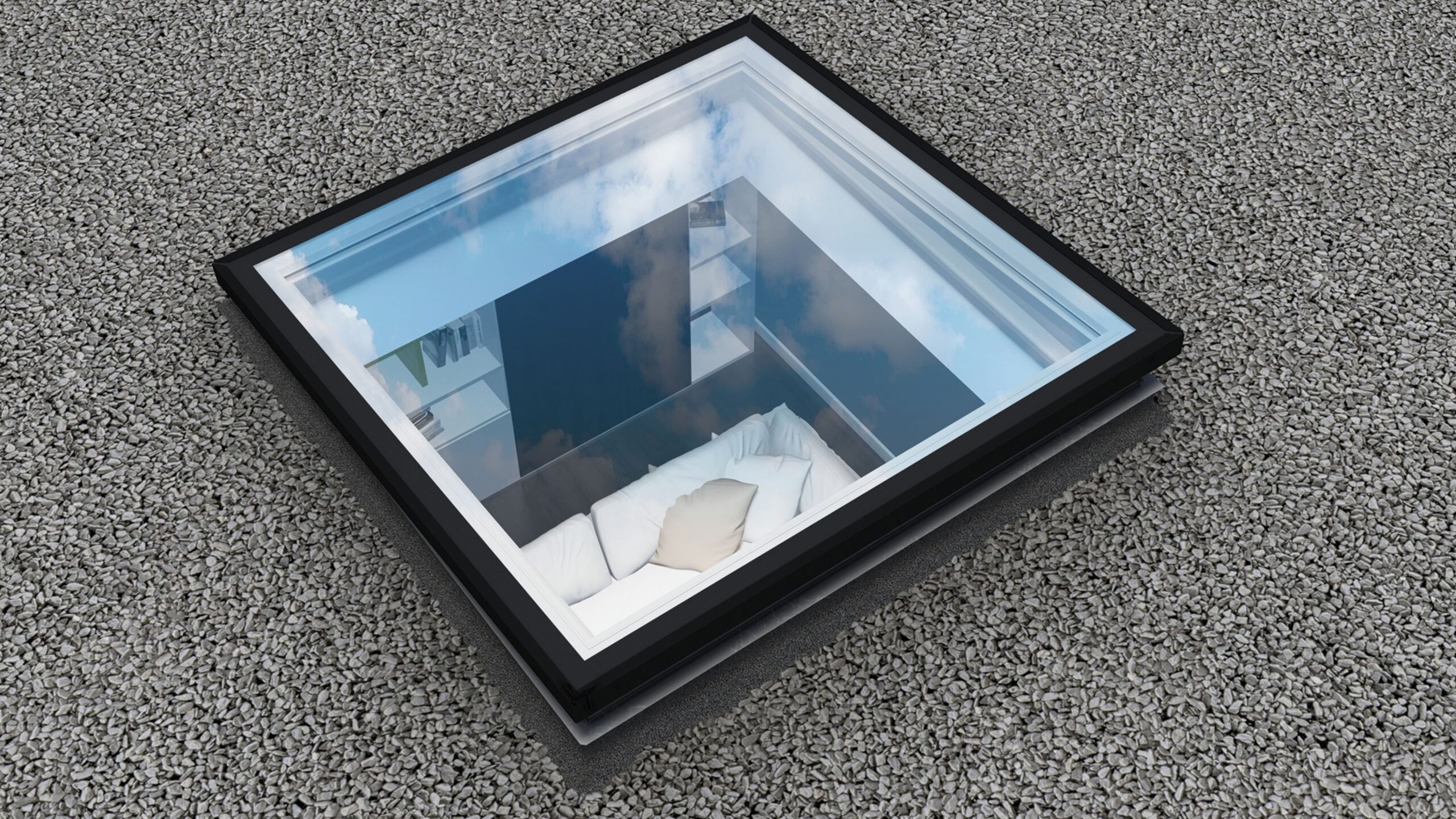

Flat roof window with flat top glass D_G
The D_G window for flat roofs provides excellent natural light entry and a modern and elegant design. Thanks to its flat top glass and multi-chamber PVC structure with integrated insulation, it offers excellent thermal performance (Uw = 0.92 W/m²K).
It is available in versions fixed, manual y Z-Wave electric, and is compatible with different sun protection and darkening systems.
The D_G window has been designed to provide a high level of natural lighting in spaces located under flat roofs, combining a modern design with excellent thermal insulation performance.
Its elegant flat top glazing integrates perfectly into the roof, providing a clean and sophisticated aesthetic. The frame and sash are made of multi-chamber PVC profiles filled with insulating material, which guarantees great energy efficiency and high durability.
The window is supplied ready for installation, facilitating quick and easy assembly.
Designed to maximize the entry of natural light without the need for ventilation.
Equipped with a manual opening mechanism using a spindle, which allows a maximum opening of 310 mm. Includes a 220 cm drive bar.
It incorporates a chain motor, a rain detector and a remote control. The motor is protected against humidity, which increases its durability and reliability.
The window can be installed on roofs with slopes between 2° y 15°. By using the inclined wedge XRD/A, its installation is also possible on roofs with a slope of 0°.
It is an ideal solution for homes, offices, extensions and any other space that requires a high level of comfort, energy efficiency and luminosity.
| Weight | N/D |
|---|---|
| Dimensions | N/D |
| Size (cm.) | 60×60, 60×90, 70×70, 80×80, 90×90, 90×120, 100×100, 100×150, 120×120, 120×220, 140×140, 150×100, 200×100 |
| Opening | Fixed, Manual, Z-WAVE Electric, Z-WAVE SOLAR Electric |
| Glazing | P2 |
| U-value | 1,1 [W/m²K] |
